JUMPERZ T-TYPE INSTRUMENT

description

JUMPERZ ZIPLINE Instrument cable is the Premium instrument cable offering from JUMPERZ. Combining innovative G&H BigFoot Copper-Core ¼” plugs that eliminate as many internal solder points and connection points as possible, and proprietary spec ZIPLINE Instrument (ZLI) 100% shielded cable, JUMPERZ ZIPLINE Instrument Cables are designed to be the closest thing to a straight wire between the instrument/source and its ultimate destination.

Built with 41 stands of Pure Bare Copper yielding a 20 AWG conductor, insulated with Low Density Polyethylene and then encased by a conductive rubber shell, the center conductor is fully insulated. A 36 AWG PBC maximum coverage spiral shield protects the wire from spurious magnetic fields and is encased in an extremely durable, yet flexible jacket.

PBC is a term most manufacturers would prefer you forgot. Why? Because they don’t use it - it’s too expensive. JUMPERZ respects your audio as much as you. Every JUMPERZ ZIPLINE cable is spun from PBC, providing 40% greater conductivity than copper-clad aluminum.

Contrary to accepted cable mythology, oxygen-free copper does not improve the sound of the cable – but it DOES provide greater flexibility before breaking than non-OFC. All JUMPERZ PBC is also oxygen-free, so your cables last a lifetime.

G&H BigFoot Copper-Core Plugs rethink the last 100 years of traditional ¼” plug design. In mass-produced traditional plugs, several subcomponents and contact points are joined together through press fitting, riveting, or soldering. Because passive instruments like guitars are already very high-impedance, each small junction point within a plug can create additional impedance and alter the quality of audio signals, especially when inferior metals and materials are used. G&H BigFoot plugs address these problems by eliminating unnecessary connection points by using Copper-Core construction. The Copper-Core design uses a solid copper rod that runs from the very top of the plug tip through the stem and body of the plug. Inside the plug body, the Copper-Core is joined directly to cable contact. Fewer signal interrupts and fewer metal types in the signal make this the ultimate ¼” plug.

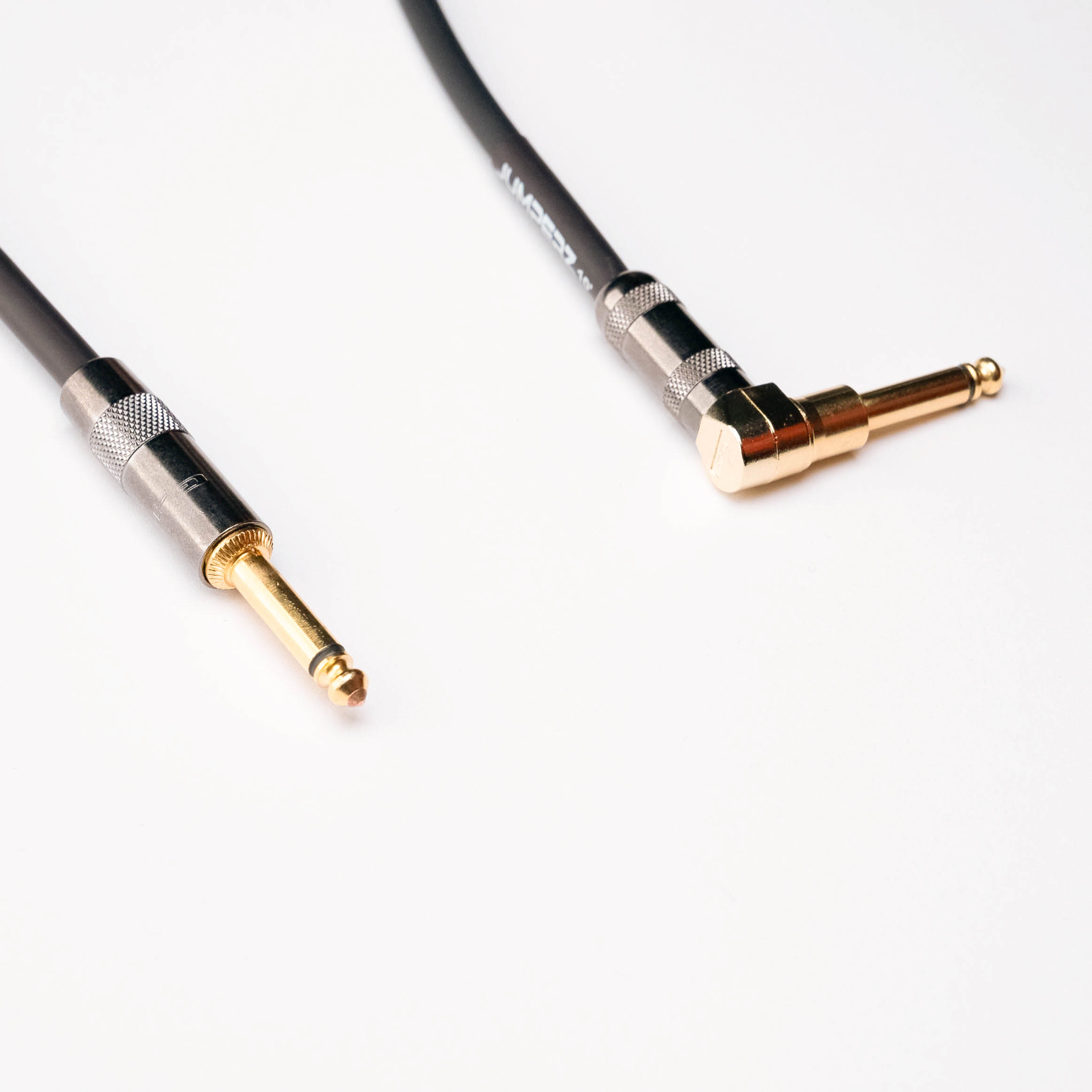

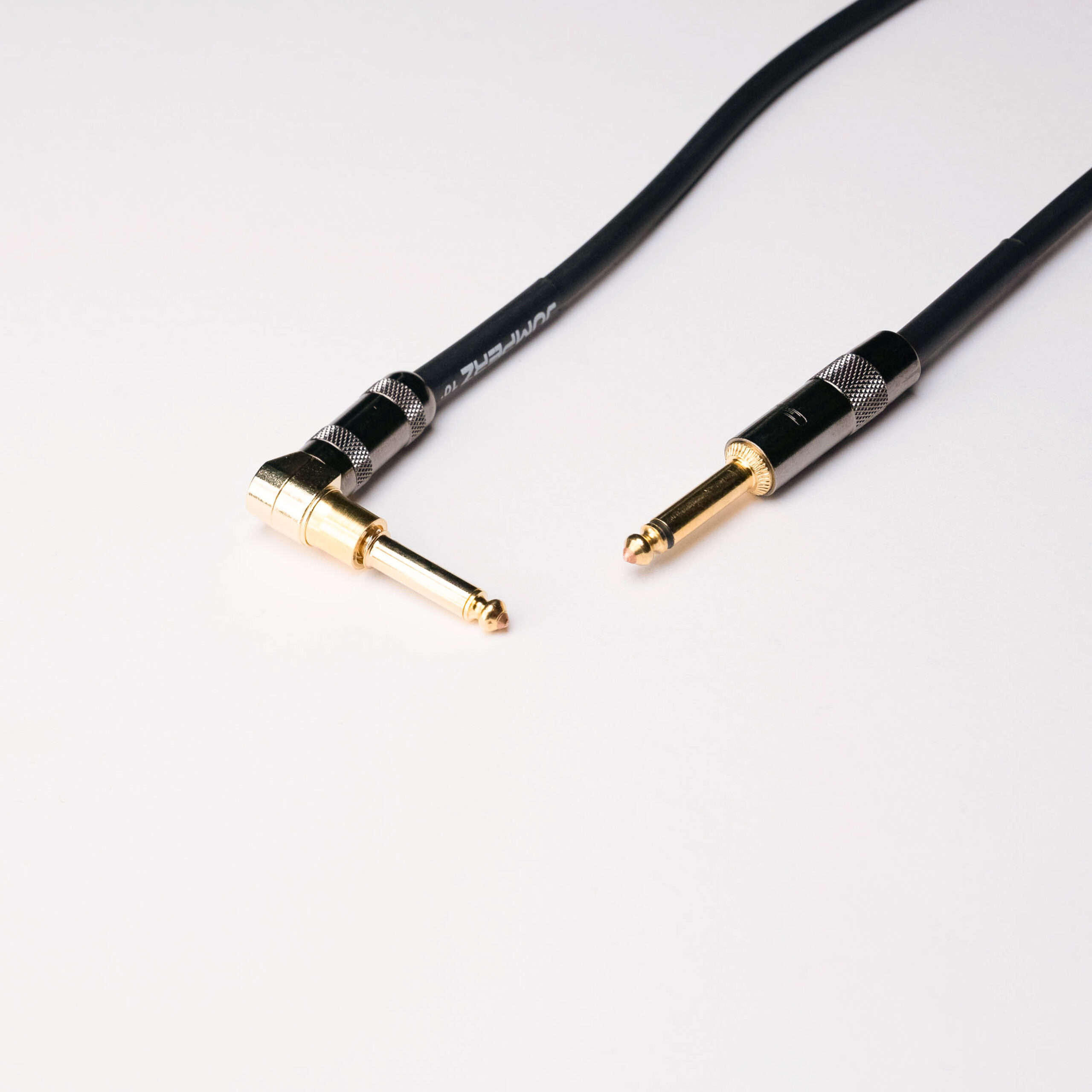

Traditional right angle cables aren’t long enough to make proper contact in a recessed jack. There is finally a solution for these instruments. G&H T-TYPE Copper-Core Plugs are designed to be the perfect fit for T-style guitars or any guitar with a side-mounted recessed jack. G&H T-TYPE Plugs feature an extended right angle plug that ensures proper contact when used with this type of jack design. Works with both stamped cup and machined type jack mounts.

Key features

JUMPERZ ZIPLINE 20ga center conductor

100% shielded

Flexible heavy-duty jacket

Secured solder points

heat shrink for strain relief

G&H T-TYPE specific connectors Available in Nickel or Gold plated

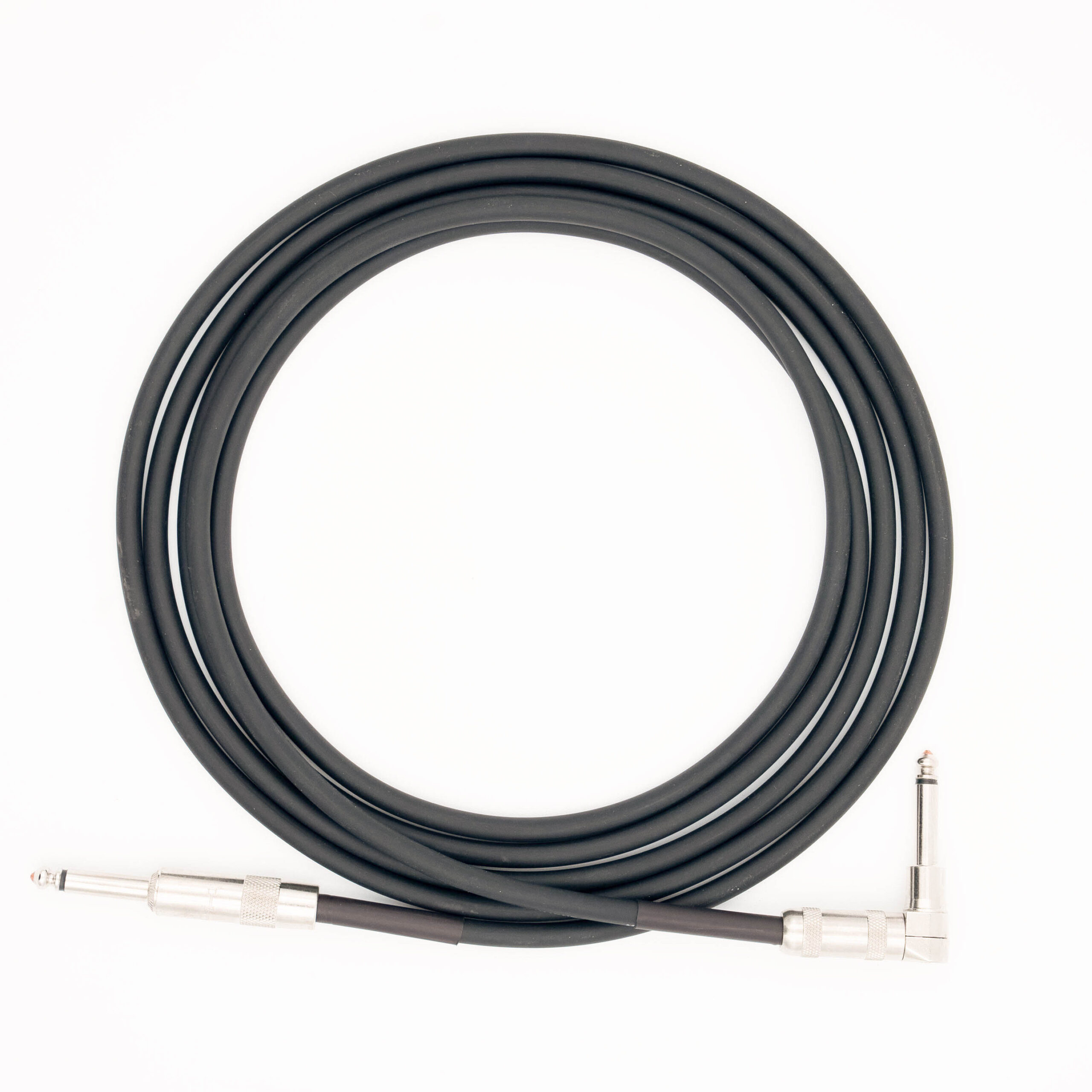

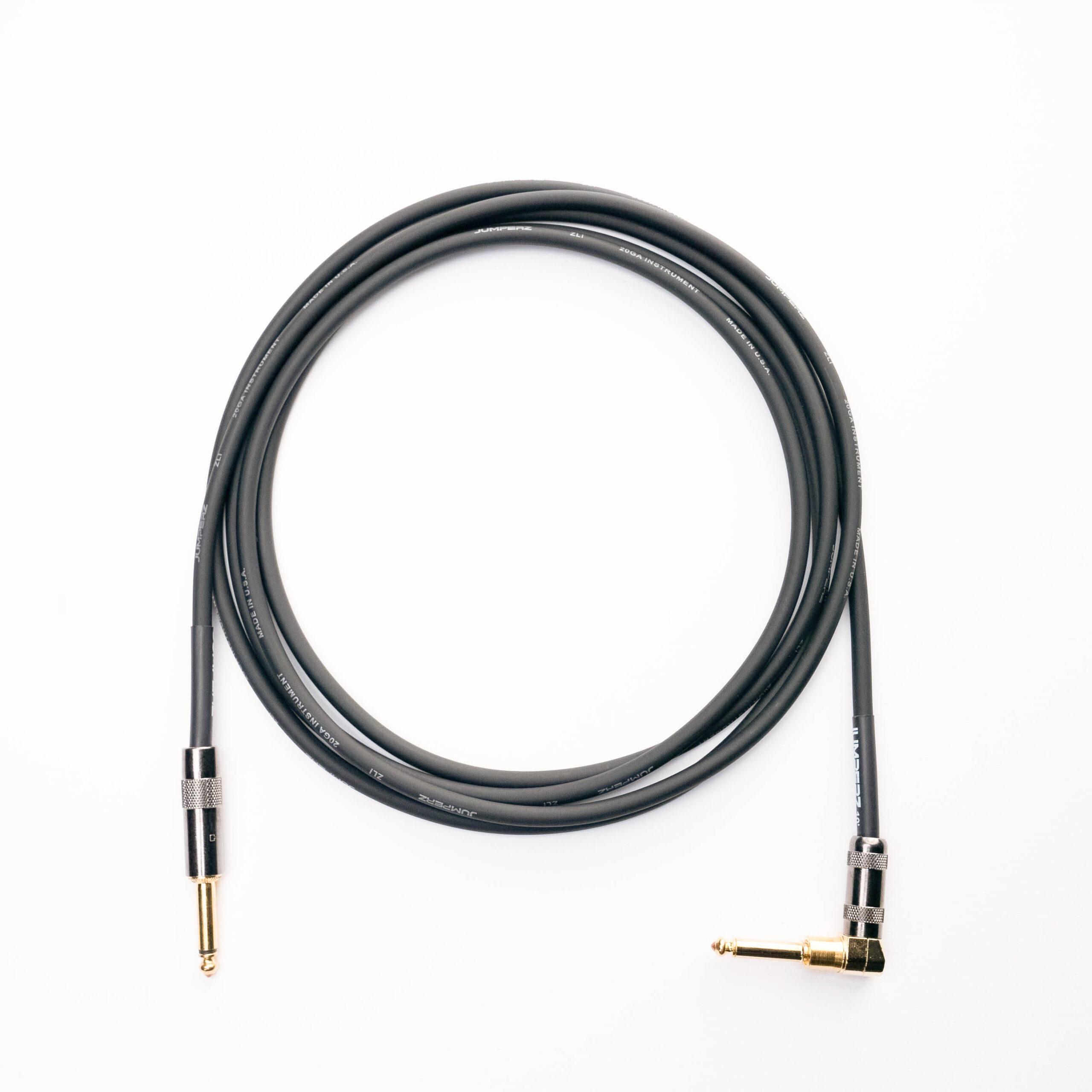

JUMPERZ T-TYPE INSTRUMENT

Features

JUMPERZ ZIPLINE 20ga center conductor

100% shielded

flexible heavy-duty jacket

secured solder points

heat shrink for strain relief and G&H T-TYPE specific NICKEL connectors.

JZTEL-10RA

JUMPERZ ZIPLINE T-TYPE 20ga-1c 1/4" to 1/4" Instrument Cable - 10FT

JZTEL-18RA

JUMPERZ ZIPLINE T-TYPE 20ga-1c 1/4" to 1/4" Instrument Cable - 18FT

JZTEL-25RA

JUMPERZ ZIPLINE T-TYPE 20ga-1c 1/4" to 1/4" Instrument Cable - 25FT

JZGTEL-10RA

JUMPERZ ZIPLINE GOLD T-TYPE 20ga-1c 1/4" to 1/4" Instrument Cable - 10FT

JZGTEL-18RA

JUMPERZ ZIPLINE GOLD T-TYPE 20ga-1c 1/4" to 1/4" Instrument Cable - 18FT

JZGTEL-25RA

JUMPERZ ZIPLINE GOLD T-TYPE 20ga-1c 1/4" to 1/4" Instrument Cable - 25FT

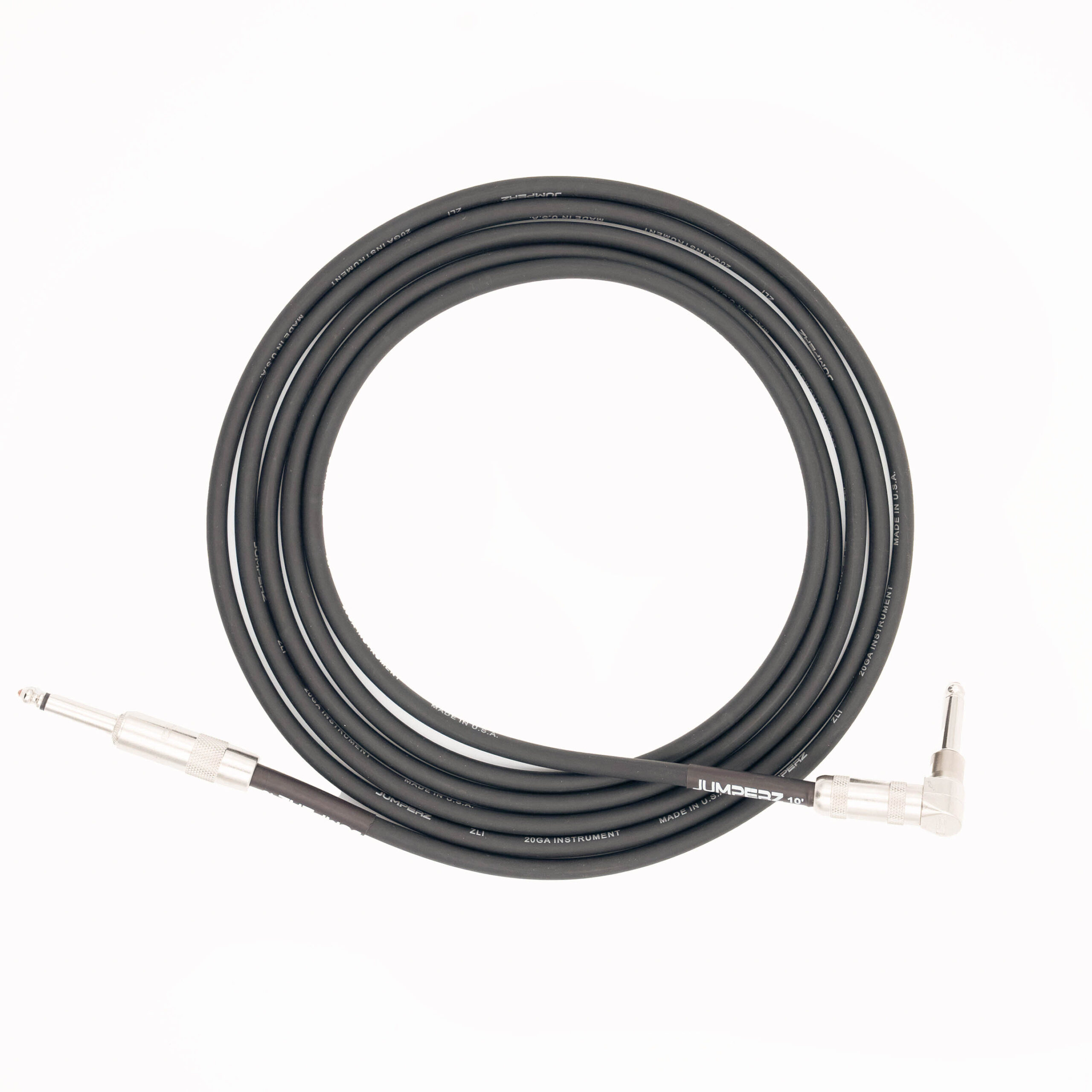

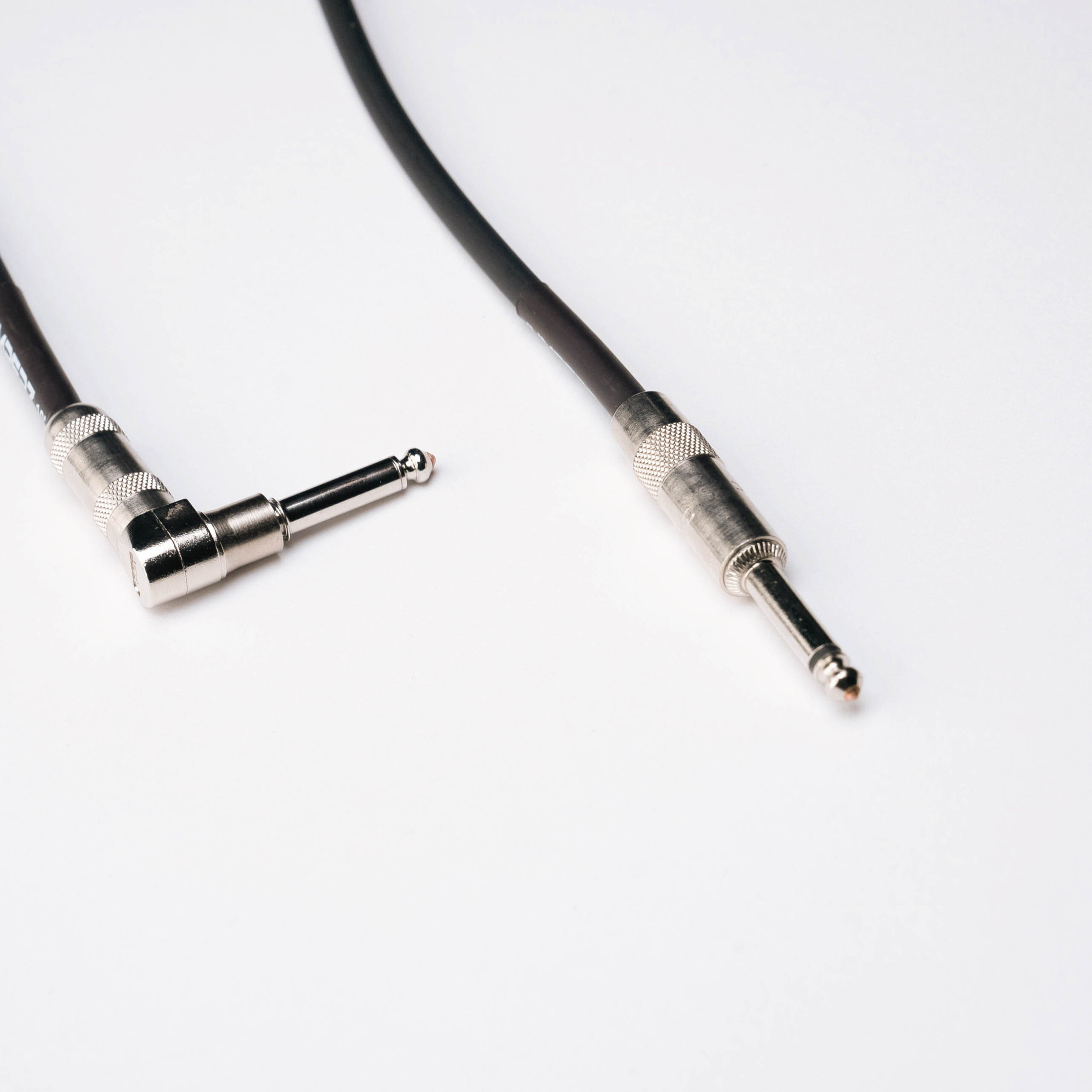

JUMPERZ T-STYLE SILENT INSTRUMENT

Features

JUMPERZ ZIPLINE 20ga-2c

100% shielded

flexible heavy-duty jacket

secured solder points

heat shrink for strain relief and G&H T-TYPE specific GOLD connectors.

JZQTEL-10RA

JUMPERZ ZIPLINE T-TYPE 20ga-1c 1/4" to 1/4" Silent Instrument Cable - 10FT

JZQTEL-18RA

JUMPERZ ZIPLINE T-TYPE 20ga-1c 1/4" to 1/4" Silent Instrument Cable - 25FT

JZQTEL-25RA

JUMPERZ ZIPLINE T-TYPE 20ga-1c 1/4" to 1/4" Silent Instrument Cable - 25FT

JZGQTEL-10RA

JUMPERZ ZIPLINE GOLD T-TYPE 20ga-1c 1/4" to 1/4" Silent Instrument Cable - 10FT

JZGQTEL-18RA

JUMPERZ ZIPLINE GOLD T-TYPE 20ga-1c 1/4" to 1/4" Silent Instrument Cable - 18FT

JZGQTEL-25RA

JUMPERZ ZIPLINE GOLD T-TYPE 20ga-1c 1/4" to 1/4" Silent Instrument Cable - 25FT

JUMPERZ ZIPLINE GOLD TRS - XLRM PATCH

Features

JUMPERZ ZIPLINE 20ga-2c

100% shielded

flexible heavy-duty jacket

secured solder points

heat shrink for strain relief and Neutrik BLACK & GOLD NP3X-B TRS & NC3FXX-B XLR connectors.

JZGTRSXM-2

JUMPERZ ZIPLINE GOLD 20ga-2c 1/4" TRS to XLRM Patch Cable - 2FT

JZGTRSXM-3

JUMPERZ ZIPLINE GOLD 20ga-2c 1/4" TRS to XLRM Patch Cable - 3FT

JZGTRSXM-6

JUMPERZ ZIPLINE GOLD 20ga-2c 1/4" TRS to XLRM Patch Cable - 6FT

JZGTRSXM-10

JUMPERZ ZIPLINE GOLD 20ga-2c 1/4" TRS to XLRM Patch Cable - 10FT

JZGTRSXM-15

JUMPERZ ZIPLINE GOLD 20ga-2c 1/4" TRS to XLRM Patch Cable - 15FT

JZGTRSXM-20

JUMPERZ ZIPLINE GOLD 20ga-2c 1/4" TRS to XLRM Patch Cable - 20FT

JZGTRSXM-30

JUMPERZ ZIPLINE GOLD 20ga-2c 1/4" TRS to XLRM Patch Cable - 30FT

JZGTRSXM-50

JUMPERZ ZIPLINE GOLD 20ga-2c 1/4" TRS to XLRM Patch Cable - 50FT
